Federated Repositories

In a federated setup, contracts/specifications are distributed across multiple contract-only repositories instead of one central contract repository.

These repositories still contain contracts/specifications only. The difference is that they are split across multiple repositories, for example by domain, department, or business unit.

Federated Repositories Example​

In this example, we will use:

Contract Repositories​

  • payments-contracts stores payment-domain contracts/specifications
  • orders-contracts stores order-domain contracts/specifications

Service Repositories​

  • payment-service provides its contract from payments-contracts
  • order-service provides its own contract from orders-contracts, and in this example it consumes the shared payment-service contract from payments-contracts

payments-contracts​

The payments-contracts repository stores the shared contracts/specifications for the payments domain.

For this example, the relevant contract/specification is:

contracts/services/payment-service/http/openapi.yaml

orders-contracts​

The orders-contracts repository stores the shared contracts/specifications for the orders domain.

For this example, the relevant contract/specification is:

contracts/services/order-service/http/openapi.yaml

payment-service​

payment-service is the provider in this example.

Its specmatic.yaml points to the payments-contracts repository for its own contract/specification:

payment-service/specmatic.yaml
systemUnderTest:
  service:
    $ref: "#/components/services/paymentService"
components:
  sources:
    paymentsContracts:
      git:
        url: https://github.com/example/payments-contracts
  services:
    paymentService:
      definitions:
        - definition:
            source:
              $ref: "#/components/sources/paymentsContracts"
            specs:
              - spec:
                  path: "contracts/services/payment-service/http/openapi.yaml"

order-service​

order-service is also a provider, but in this example we are looking at it as a consumer of the shared payment-service contract from payments-contracts.

Its specmatic.yaml points to:

  • orders-contracts for its own order-service contract/specification
  • payments-contracts for the shared payment-service contract/specification
order-service/specmatic.yaml
systemUnderTest:
  service:
    $ref: "#/components/services/orderService"
dependencies:
  services:
    - service:
        $ref: "#/components/services/paymentService"
components:
  sources:
    ordersContracts:
      git:
        url: https://github.com/example/orders-contracts
    paymentsContracts:
      git:
        url: https://github.com/example/payments-contracts
  services:
    orderService:
      definitions:
        - definition:
            source:
              $ref: "#/components/sources/ordersContracts"
            specs:
              - spec:
                  path: "contracts/services/order-service/http/openapi.yaml"
    paymentService:
      definitions:
        - definition:
            source:
              $ref: "#/components/sources/paymentsContracts"
            specs:
              - spec:
                  path: "contracts/services/payment-service/http/openapi.yaml"

To learn more about specmatic.yaml, see Specmatic configuration.

Repository flow​

The repository flow in the federated model is similar to Central Contract Repository.

The main differences are:

  • run the central contract repo report flow separately for each federated contract repository
  • service repositories may point to one or more federated contract repositories, depending on how contracts/specifications are split

CI Workflows​

PR Process​

Pull requests on each federated contract repository should run the usual pre-merge checks for contracts/specifications before they are merged.

To learn more about the shared PR process for contract repositories, see PR Process.

Posting reports to Insights​

Publish reports to Insights only from workflows that run on push or merge to main.

Federated contract repository workflow​

The federated contract repository workflow is the same as in Central Contract Repository.

In the federated model, run that workflow for each federated contract repository.

Service repository workflow​

The service repository workflow in the federated model is the same as in Central Contract Repository.

How this will look in Insights​

Insights processes federated contract repositories in the same way as a Central Contract Repository, but instead of one shared central contract repository, it will show one Spec Repository block per federated contract repository.

In this example, you will see two Spec Repository blocks:

  • order-contracts
  • payment-contracts

order-contracts Spec Repository block​

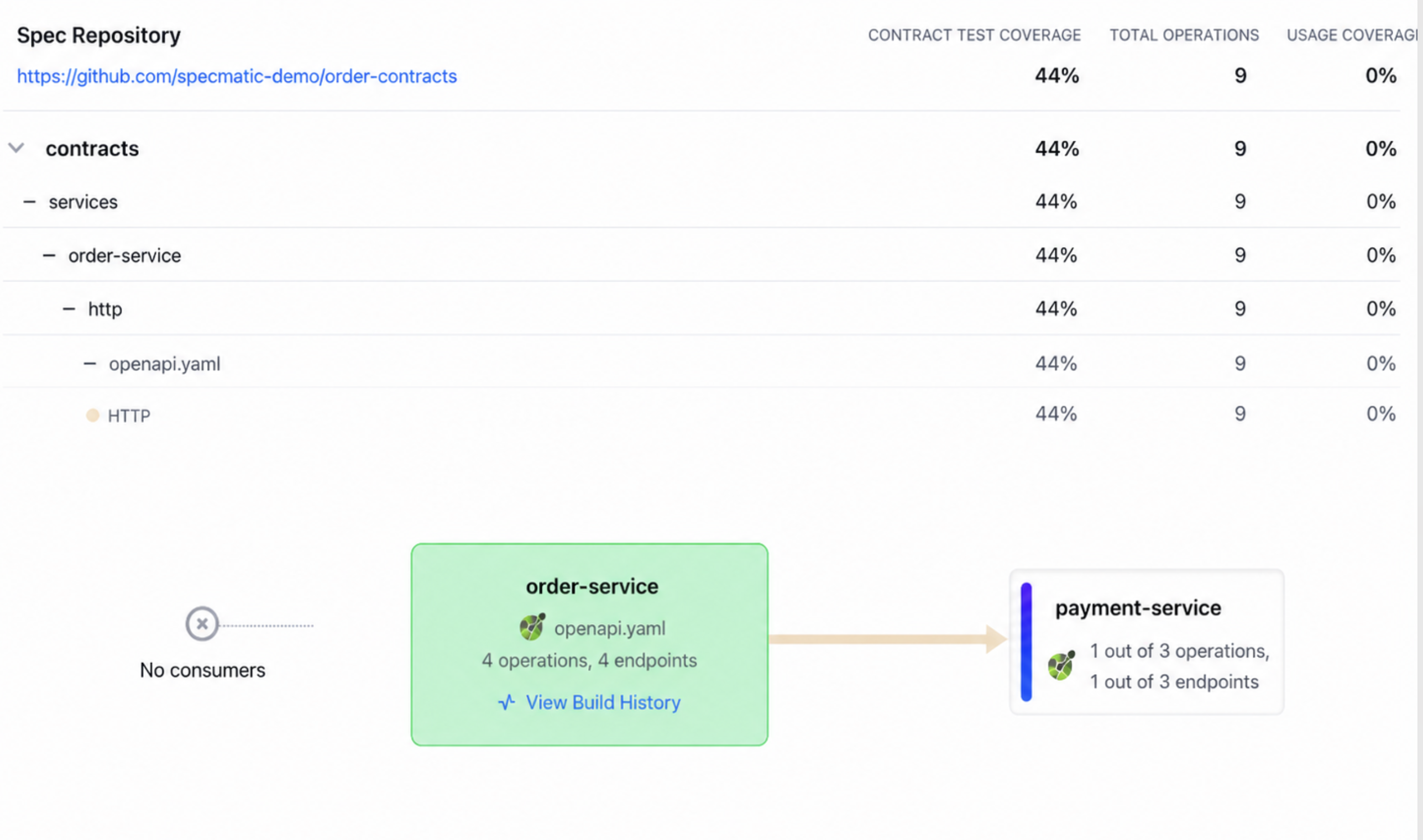

The following snapshot shows the order-contracts repository in Insights:

order-contracts in Insights

In this view:

  • the Spec Repository block comes from the order-contracts central contract repo report
  • the block lists the contracts/specifications stored in order-contracts, such as contracts/services/order-service/http/openapi.yaml
  • order-service appears in the center because it provides the order-service contract/specification from order-contracts
  • there are no consumers shown on the left-hand side for this contract/specification
  • payment-service appears on the right-hand side because order-service consumes that dependency

payment-contracts Spec Repository block​

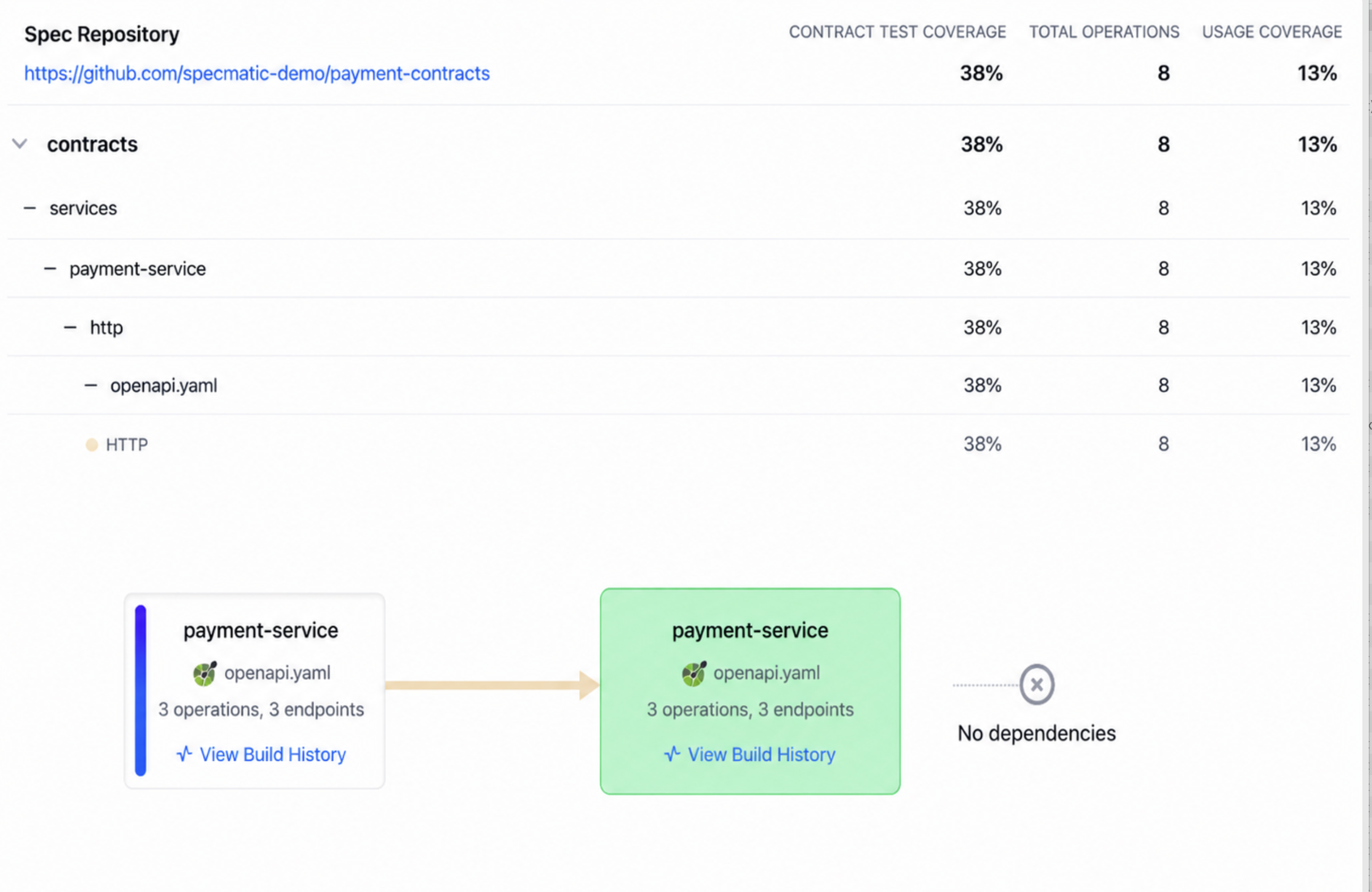

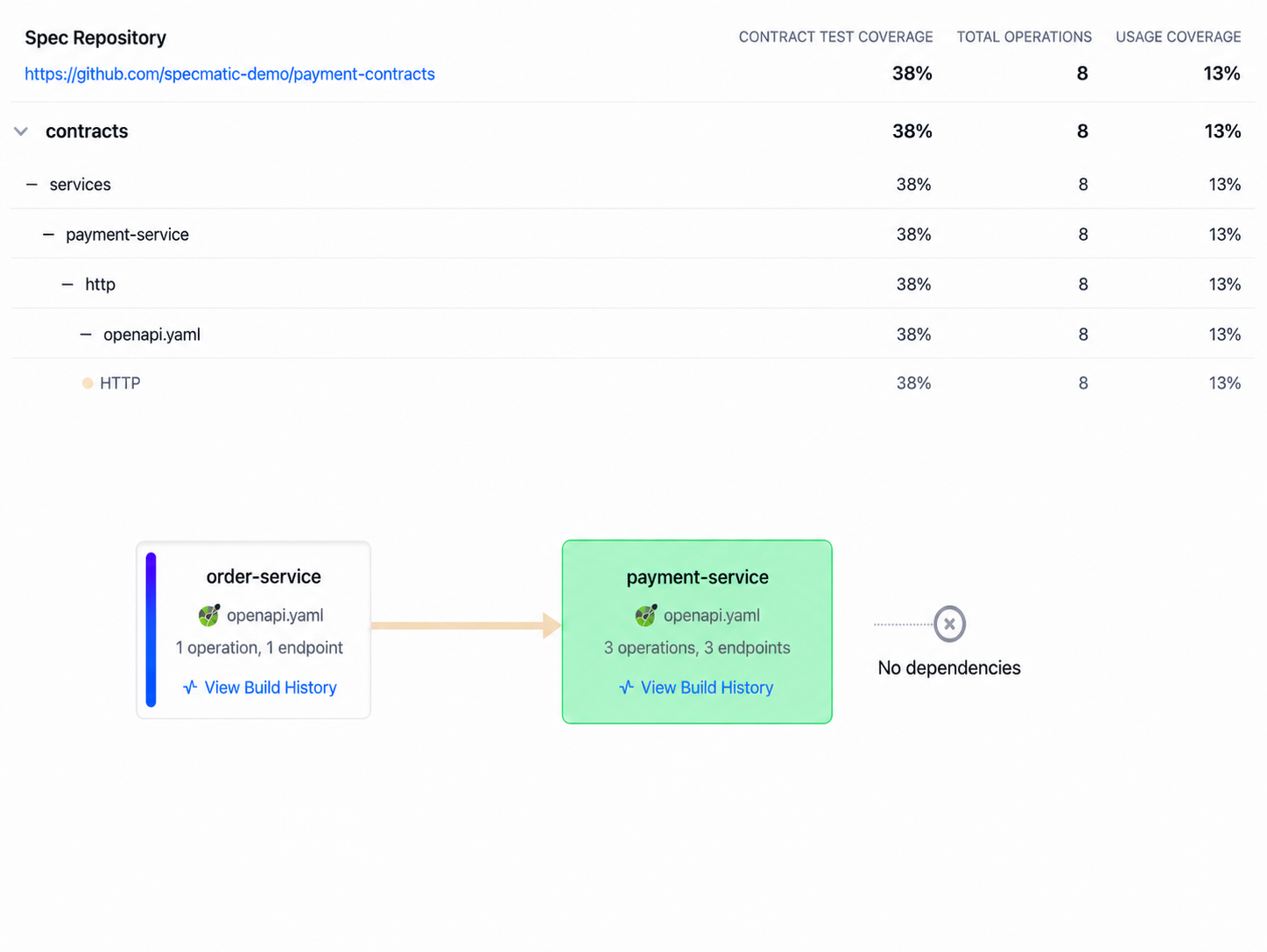

The following snapshot shows the payment-contracts repository in Insights:

payment-contracts in Insights

In this view:

  • the Spec Repository block comes from the payment-contracts central contract repo report
  • the block lists the contracts/specifications stored in payment-contracts, such as contracts/services/payment-service/http/openapi.yaml
  • payment-service appears in the center because it provides the payment-service contract/specification from payment-contracts
  • order-service appears on the left-hand side because it consumes the shared payment-service contract/specification from payment-contracts
  • there are no dependencies shown on the right-hand side for this contract/specification

Troubleshooting​

Troubleshooting in the federated model is similar to Central Contract Repository.

The main differences are:

  • make sure the relevant central contract repo report was generated from the correct federated contract repository and posted to Insights
  • make sure the provider or consumer repository points to the correct spec path in the correct federated contract repository
